RAG Pipeline Quickstart with PostgreSQL

Approximate time to complete: 5-10 minutes, excluding prerequisites

This quickstart will walk you through creating and scheduling a pipeline that uses a web crawler to ingest data from the Vectorize documentation, creates vector embeddings using an OpenAI embedding model, and writes the vectors to a PostgreSQL vector database using Supabase.

Before you begin

Before starting, ensure you have access to the credentials, connection parameters, and API keys as appropriate for the following:

• A Vectorize account (Create one free here ↗ )
• An OpenAI API Key (How to article)
• An Supabase account (Create one on Supabase ↗)

Step 1: Create a PostgreSQL Database

Create Your Database

1. The first time you log in to Supabase, you'll be prompted to create an organization. Name your organization, select the organization type and the desired plan, then click Create organization.



2. You'll be prompted to create a project. Name your project, set and securely save your database password, select your region, then click Create new project.



3. Go to Project Settings, then select Database under Configuration. Save and securely store the host, database name, port, and user.



Enable pgVector

pgVector is a PostgreSQL extension which allows you to store vector embeddings directly in your existing database, eliminating the need for a separate vector database.

1. Navigate to the SQL Editor in the Supabase dashboard.

2. In the query editor, enter and run the following command to enable the pgVector extension in your database.

   CREATE EXTENSION IF NOT EXISTS vector;

3. Verify that pgVector has been enabled.



Step 2: Create a RAG Pipeline on Vectorize

Create a New RAG Pipeline

1. Open the Vectorize Application Console ↗

2. From the dashboard, click on + New RAG Pipeline under the "RAG Pipelines" section.



3. Enter a name for your pipeline. For example, you can name it quickstart-pipeline.

4. Click on New Vector DB to create a new vector database integration.



5. Select PostgreSQL from the list of vector databases.



6. Enter the parameters in the form using the PostgreSQL Parameters table below as a guide, then click Create PostgreSQL Integration.



PostgreSQL Parameters

Field	Description	Required
Name	A descriptive name to identify the integration within Vectorize.	Yes
Host	The name of the host where your database is located.	Yes
Port	The port you'll connect to.	Yes
Database	Your database name.	Yes
Username	The name of the user used to connect to your database.	Yes
Password	The user's password.	Yes

Configure the PostgreSQL integration in your RAG Pipeline

You can think of the PostgreSQL integration as having two parts to it. The first is authorization with your PostgreSQL cluster. This part is re-usable across pipelines and allows you to connect to this same application in different pipelines without providing the credentials every time.

The second part is the configuration that's specific to your RAG Pipeline. This is where you specify the name of the table in your PostgreSQL database. If the table does not already exist, Vectorize will create it for you.

Configure AI Platform

1. Click on New AI Platform.



2. Select OpenAI from the AI platform options.



3. In the OpenAI configuration screen:

   • Enter a descriptive name for your OpenAI integration.
   • Enter your OpenAI API Key.



4. Leave the default values for embedding model, chunk size, and chunk overlap for the quickstart.



Add Source Connectors

1. Click on Add Source Connector.

2. Choose the type of source connector you'd like to use. In this example, select Web Crawler.

Configure Web Crawler Integration

1. Name your web crawler source connector, e.g., vectorize-docs.
2. Set Seed URL(s) to https://docs.vectorize.io.

3. Click Create Web Crawler Integration to proceed.

Configure Web Crawler Pipeline

1. Accept all the default values for the web crawler pipeline configuration:
   • Throttle Wait Between Requests: 500 ms
   • Maximum Error Count: 5
   • Maximum URLs: 1000
   • Maximum Depth: 50
   • Reindex Interval: 3600 seconds

2. Click Save Configuration.

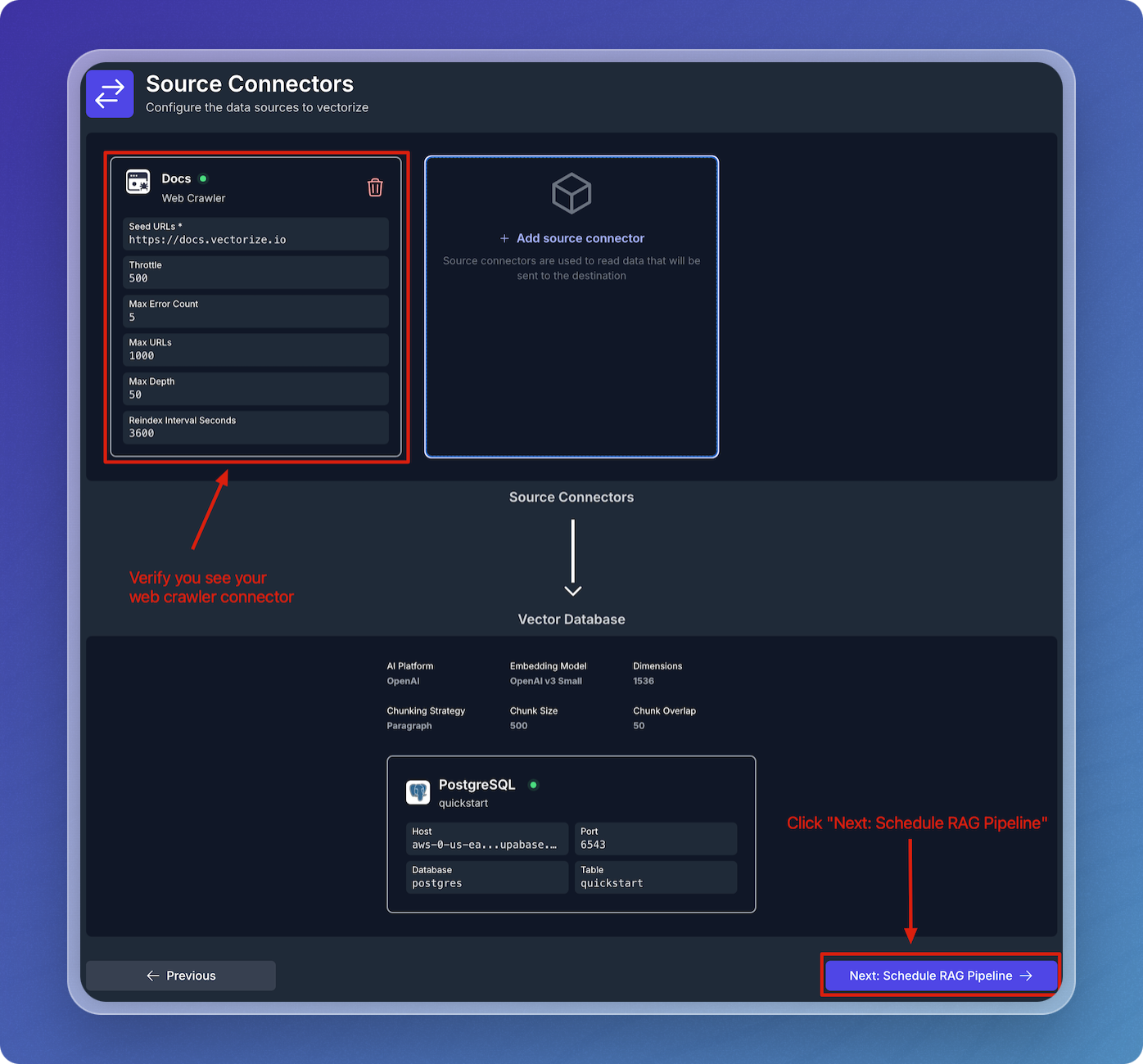

Verify Source Connector and Schedule Pipeline

1. Verify that your web crawler connector is visible under Source Connectors.
2. Click Next: Schedule RAG Pipeline to continue.

Schedule RAG Pipeline

1. Accept the default schedule configuration
2. Click Create RAG Pipeline.

Step 3: Monitor and Test Your Pipeline

Monitor Pipeline Creation and Backfilling

1. The system will now create, deploy, and backfill the pipeline.
2. You can monitor the status changes from Creating Pipeline to Deploying Pipeline and Starting Backfilling Process.

3. Once the initial population is complete, the RAG pipeline will begin crawling the Vectorize docs and writing vectors to your Pinecone index.

View RAG Pipeline Status

1. Once the website crawling is complete, your RAG pipeline will switch to the Listening state, where it will stay until more updates are available.

2. Your vector index is now populated and we can try it out using the RAG Sandbox, to do so click on RAG Pipelines from the left hand menu.

Test Your Pipeline in the RAG Sandbox

1. After your pipeline is running, open the RAG Sandbox for the pipeline by clicking the magnifying glass icon on the RAG Pipelines page.

2. In the RAG Sandbox, you can ask questions about the data ingested by the web crawler.
3. Type a question into the input field (e.g., "What are the key features of Vectorize?"), and click Submit.

4. The system will return the most relevant chunks of information from your indexed data, along with an LLM response.

This completes the RAG pipeline quickstart. Your RAG pipeline is now set up and ready for use with PostgreSQL and Vectorize.
